PM42-C54A touch dimmer for LED mirror light
price
$3.00 - $3.50 / piece
PM42-C54A
1 piece
Shenzhen
Quantity
- Warranty(Year):2-Year
- Lighting solutions service:auto CAD layout
- Place of Origin:Guangdong, China
- Brand Name:PIMI
- Type:MANUAL SWITCH
- Max. Load Power:36W
- Product name:Mirror light touch dimmer
- Input Voltage:7-30V 27-60V DC
- Output Voltage:7-30V 27-60V DC
- Output Current:1000-3000mA
- Output power:36W max
- dimming mode 1:continuous dimming
- dimming mode 2:step dimming
- dimming mode 3:dimming and change CCT
- Voltage:7-30V 27-60V DC

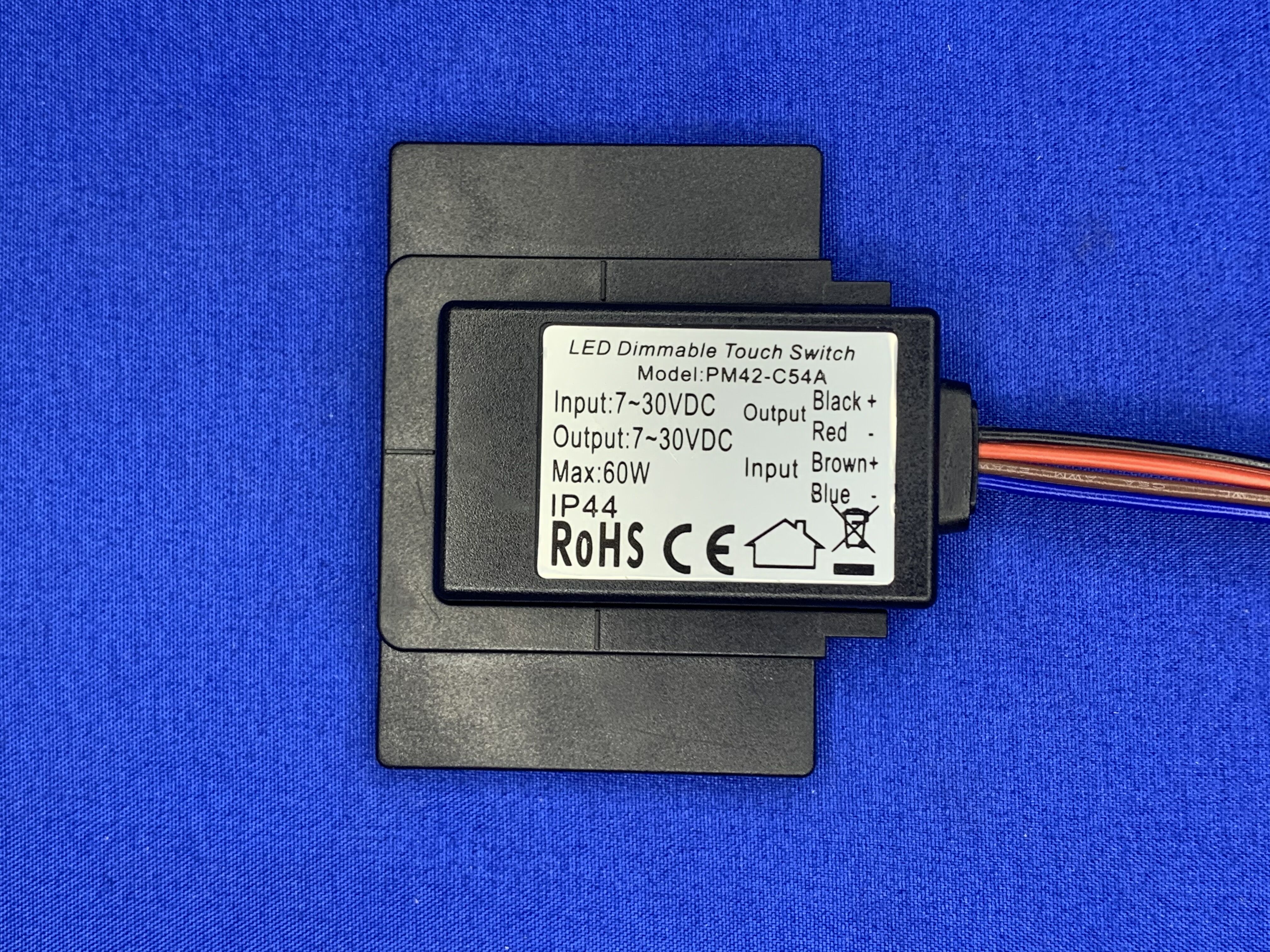

PM42-C54A

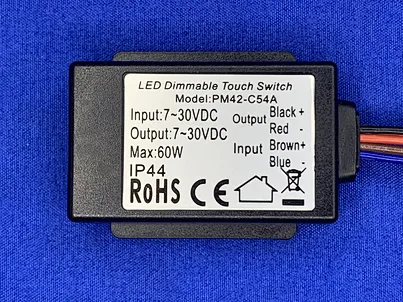

Mirror light touch dimmer switch
| Model | Inout constant voltage | Output constant voltage | Output current (max) | Dimming mode | Approval |
| PM42-C54A1000 | 7-30V | 7-30V | 1000mA | Touch continuous dimming
Touch step dimming
Touch dimming and change CCT | CE |
| PM42-C54A2000 | 7-30V | 7-30V | 2000mA | CE | |
| PM42-C54A3000 | 7-30V | 7-30V | 3000mA | CE | |
| PM42-C54A1000H | 27-60V | 27-60V | 1000mA | CE | |
| PM42-C54A2000H | 27-60V | 27-60V | 2000mA | CE | |
| PM42-C54A3000H | 27-60V | 27-60V | 3000mA | CE |
Dimming mode:
touch continuous dimming
4-stage touch dimming
dimmer and adjust color temperarture

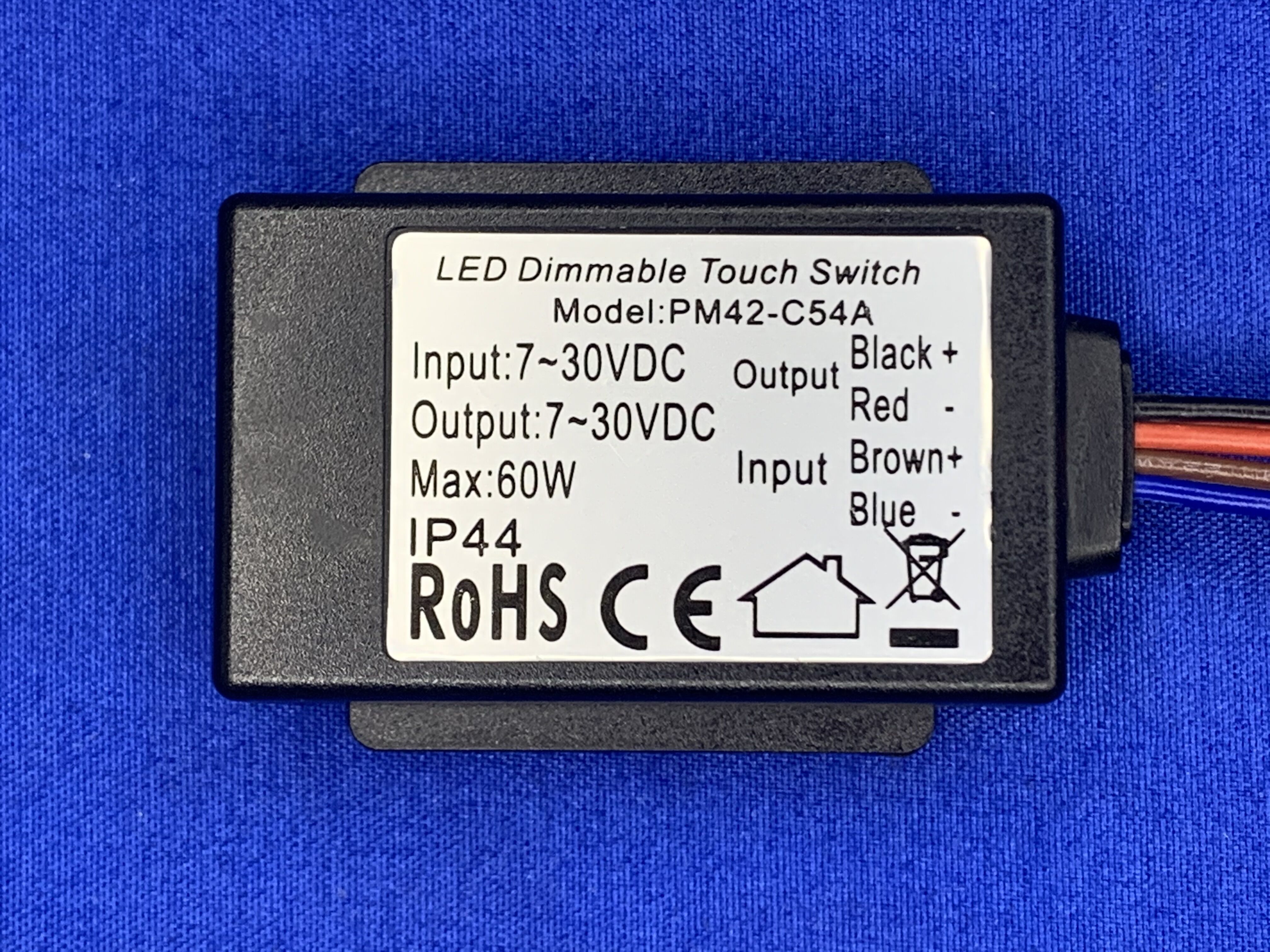

Touch dimmer switch dimensions(L*W*H): 50*30*11mm

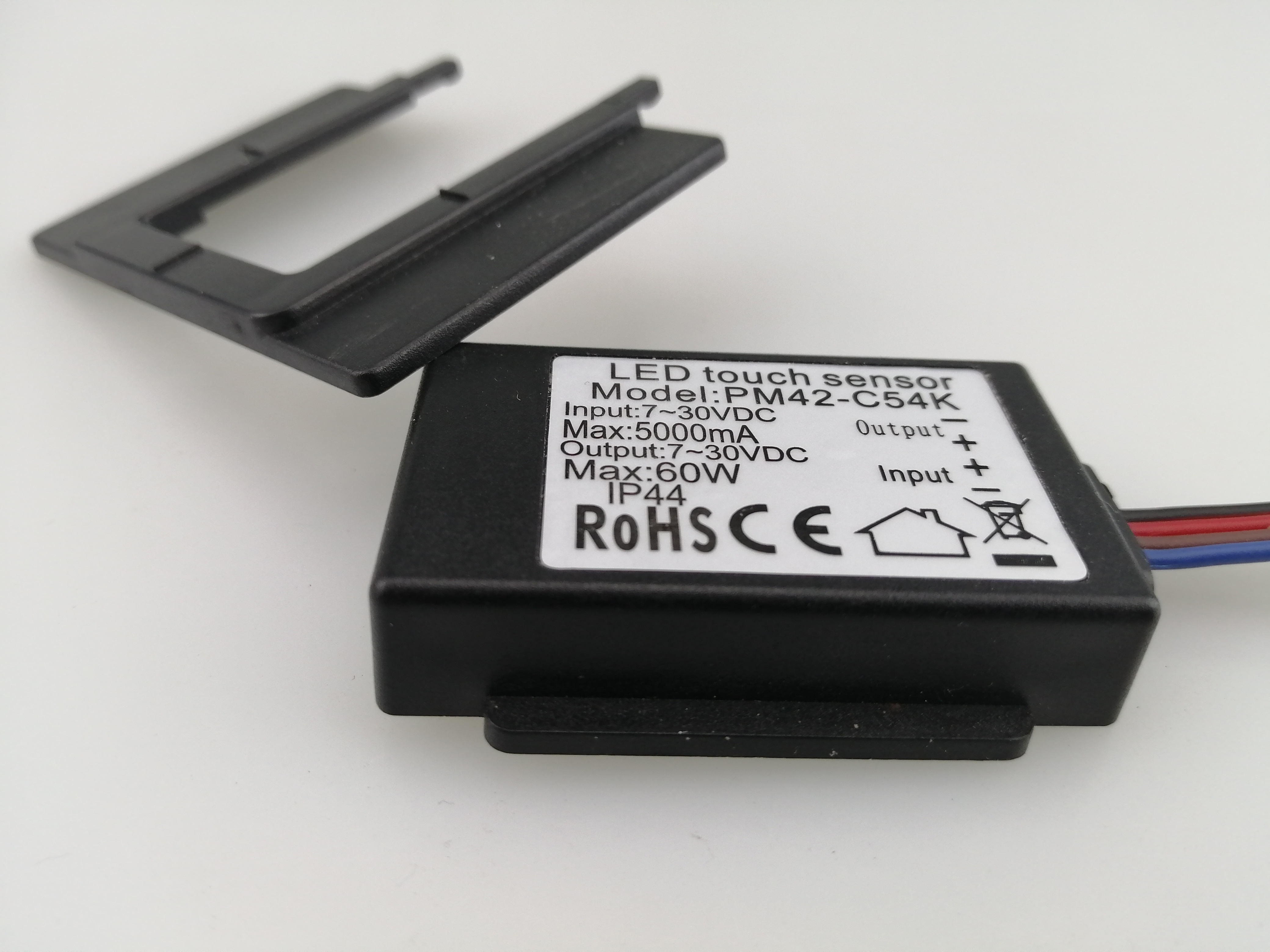

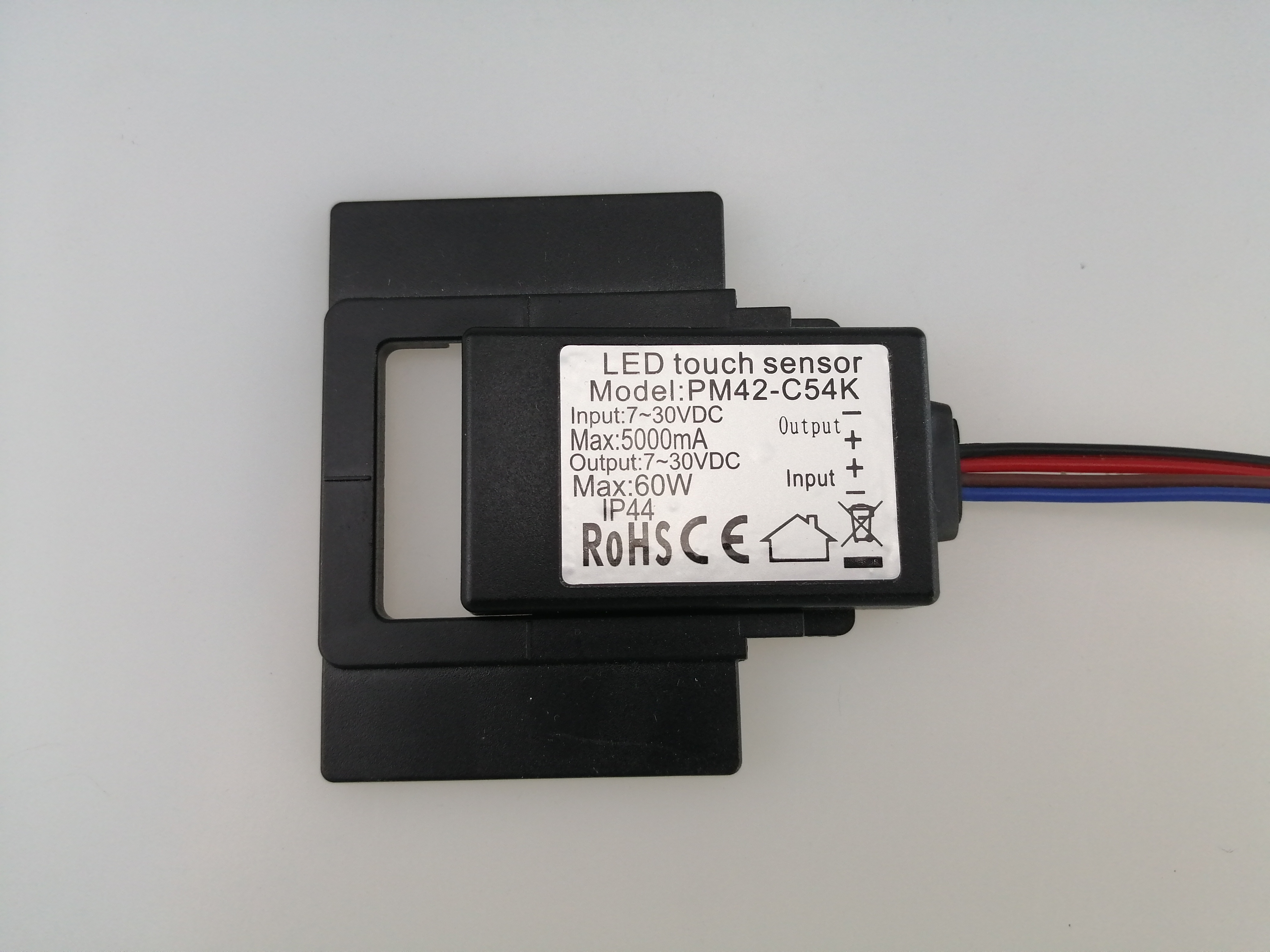

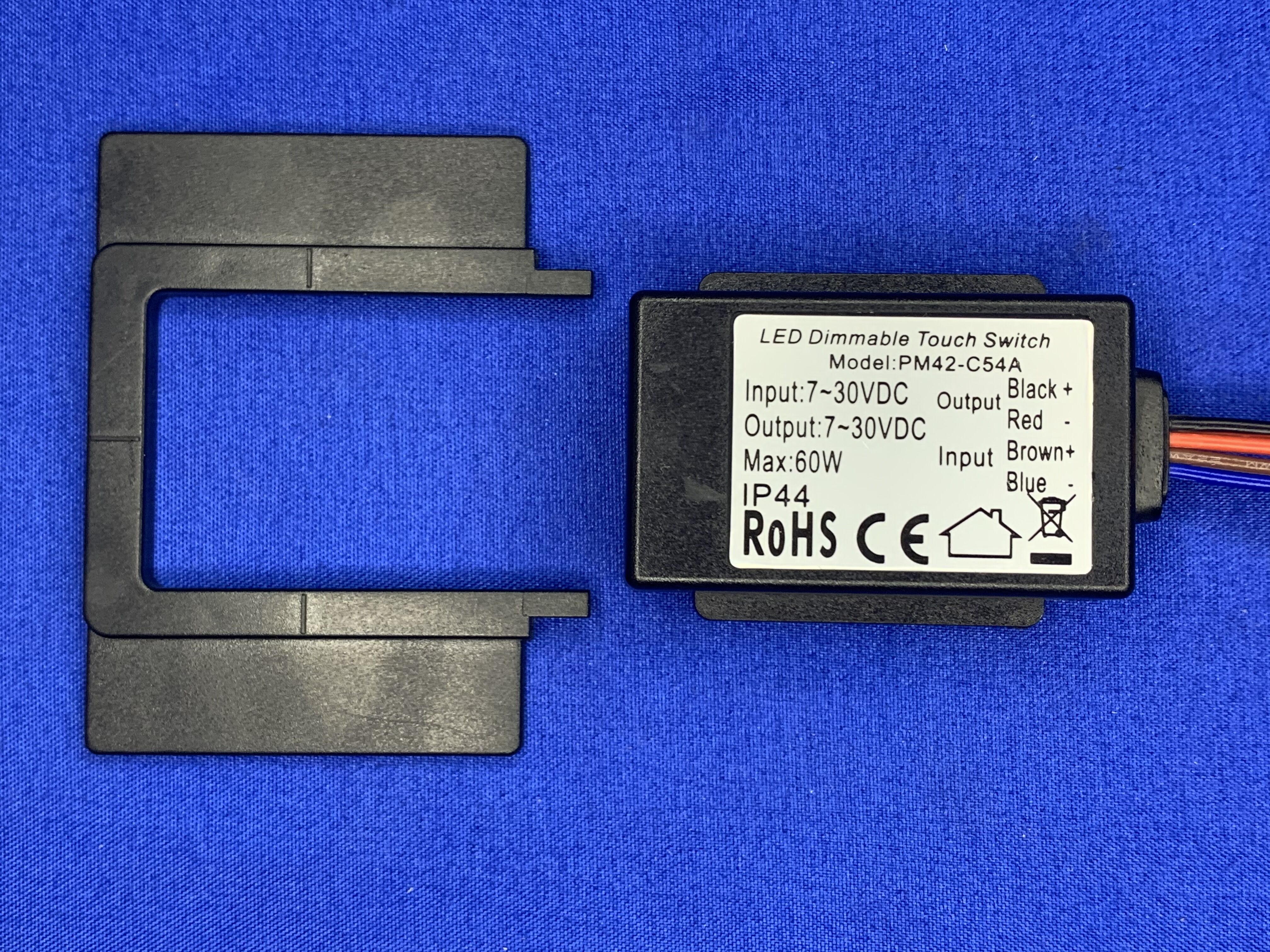

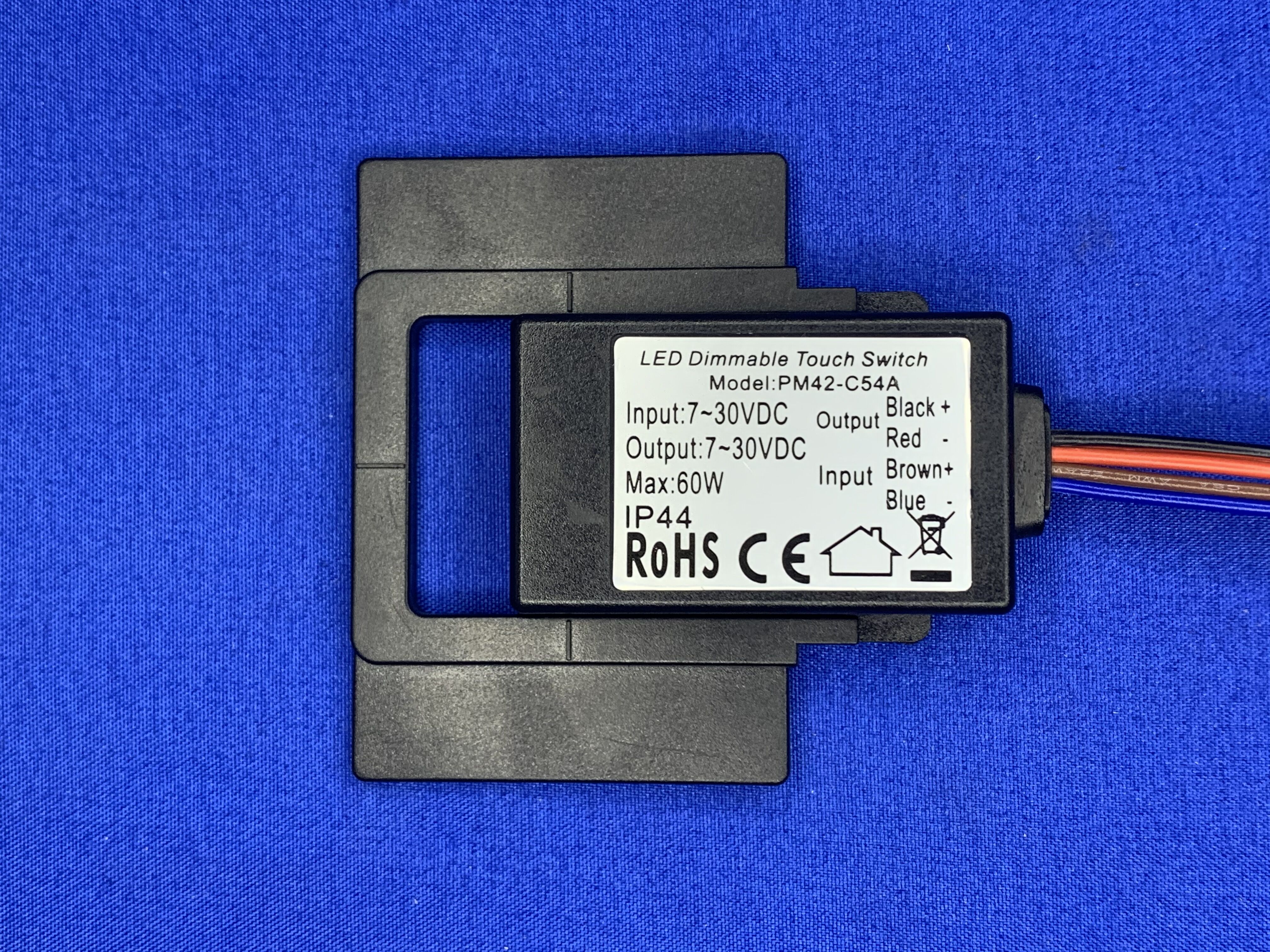

Bracket dimensions: (L*W*H): 65*52*2mm
With double sided adhesive
With back light
Induction distance: 3-15cm
Thickness of the spacer: 1-5mm
Standards: EN 61058
EN 61347
EN 55015
EN 61000
EN 61547
